Alright folks, let's talk about a little project I've been tinkering with lately – building a high-quality audio amplifier. I've been diving deep into the world of transistors and audio circuitry, and I'm finding it incredibly rewarding. It's amazing how much detail and nuance you can achieve with a well-designed amplifier. The foundation of any good amplifier, of course, lies in its components, and the power transistors are absolutely critical. They're the workhorses that deliver the clean, powerful signal to your speakers.
TTA1943 and TTC5200 Power Transistors
I've been looking at using the TTA1943 and TTC5200 transistor pair. These seem to be a very popular choice for audio amplifier projects, and for good reason. They are known for their high power handling capabilities and their relatively low distortion characteristics, which are essential for reproducing audio with accuracy. From what I gather, the TTA1943 is an NPN transistor, while the TTC5200 is a PNP transistor, and they are typically used together in a push-pull configuration in the output stage of an amplifier. This configuration helps to efficiently amplify both the positive and negative halves of the audio signal. I've been spending a good amount of time researching these transistors and understanding their specifications. The key parameters to consider include the collector current (Ic), collector-emitter voltage (Vce), and power dissipation (Pd). It's crucial to ensure that the transistors are operated within their safe operating area to prevent damage and ensure long-term reliability. Overheating is a major concern with power transistors, so proper heatsinking is essential. I'm planning on using some hefty heat sinks with these to keep them running cool, especially at higher power levels. It's also a good idea to use a thermally conductive paste between the transistor and the heat sink to maximize heat transfer.

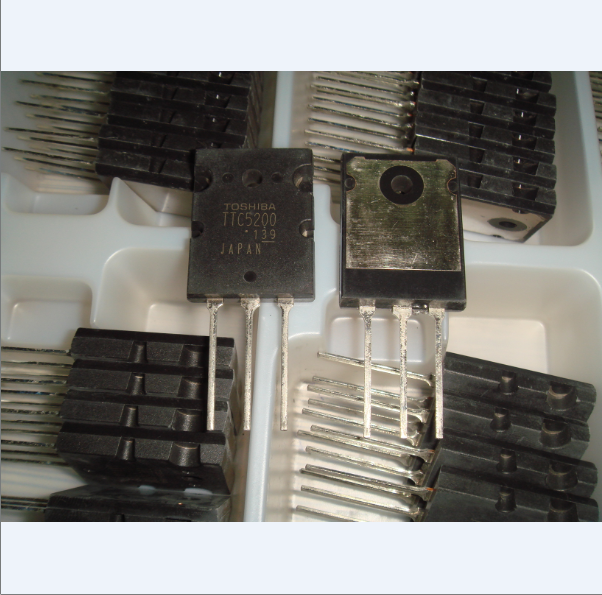

Original Imported TTA1943 TTC5200 Pair
I've been doing my due diligence when it comes to sourcing these transistors. It's important to get genuine, high-quality components, especially when dealing with power transistors. There are a lot of counterfeit parts floating around, and using them can lead to poor performance, or even catastrophic failure of the amplifier. So I’m looking for reputable suppliers, and ideally "original imported" parts, as those would provide assurance that they were made according to the manufacturers specifications and that they are guaranteed to have the correct electrical properties. Of course, understanding the datasheet is crucial. They provide a wealth of information about the transistor's characteristics and limitations. Understanding the datasheet is key to operating the transistors within safe parameters and achieving the desired performance from the amplifier. I will need to pay close attention to the gain characteristics of these transistors. Gain is measured using hFE, which represents the amount of current amplification the transistor can provide. Its typically best to closely match the gain of the transistors being used in the push-pull configuration in order to achieve an even balance and minimize distortion. This can be achieved through carefully testing and selecting transistors that have similar hFE values. I will be building a small testing circuit with these transistors before I implement them into the audio amplifier project to ensure that they are performing as expected.
If you are looking for PR-800 1000W Class A Professional Stage Amplifier Board w/ 81D 8200uF you've came to the right web. We have 25 Pictures about PR-800 1000W Class A Professional Stage Amplifier Board w/ 81D 8200uF like Ttc5200 and tta1943 transistor for amplifier circuit diagram how to, Ttc5200 Tta1943 Amplifier Circuit Diagram - Handmadeness and also High Power Amplifier Transistor Power Amplifier (BJT) TTA1943 TTC5200. Read more:

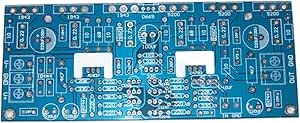

PR-800 1000W Class A Professional Stage Amplifier Board W/ 81D 8200uF
